Products - Ground Support Equipment (GSE)

GSE products

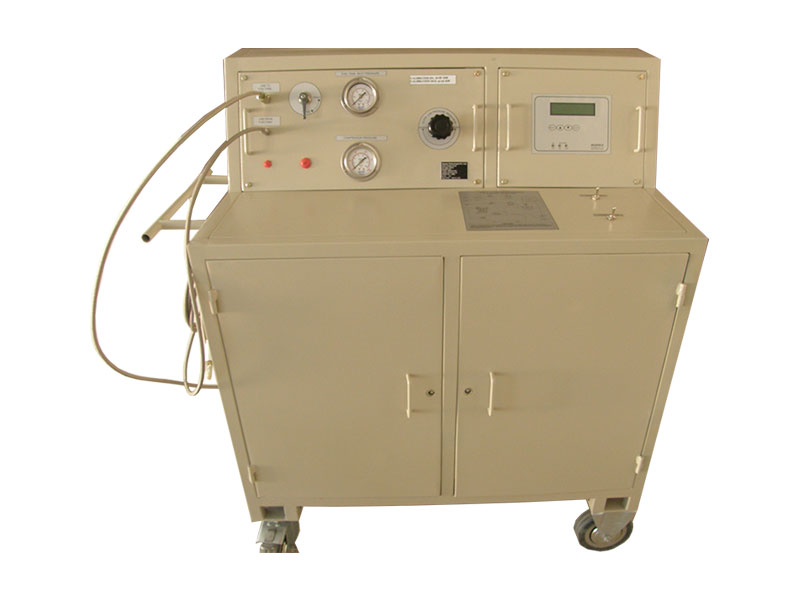

Fuel Tank Leak Tester

Fuel Tank Leak Tester is designed to test metal or rubber tank, air tight enclosures and hoses ranging from a pressure of 50 mm of water column to 1400 mm of water column.

This equipment has been customized for use on various components and systems on the ALH aircraft.

Salient Features:
  • Designed for ultra-low pressure leak test
  • Tubular Trolley construction for easy movement
  • Operates at 230 VAC input
  • End adaptor can be modified for compatibility with Aircrafts or Helicopters.
  • Tarpaulin cover for dust protection

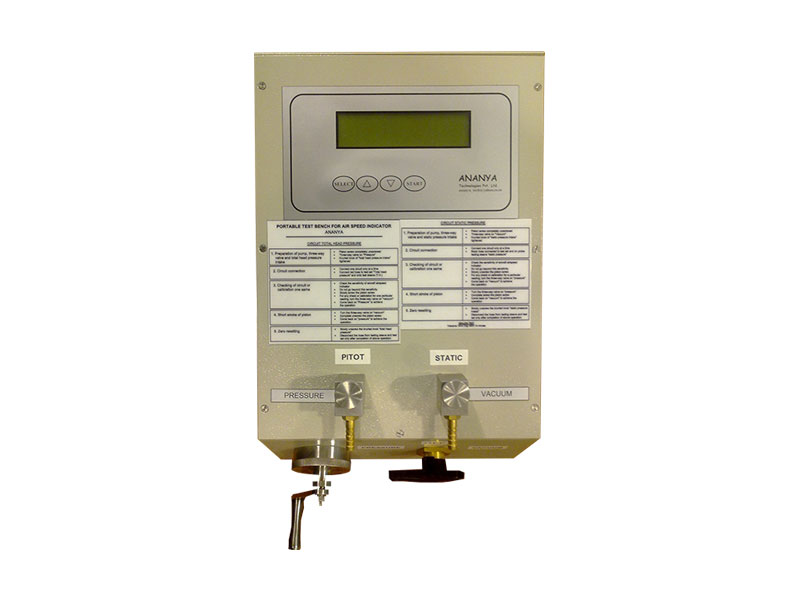

Air Speed Indicator (ASI)

Air speed indicator is used for testing and calibration of air speed and altimeter separately and also as a system installed in helicopter. Air speed indicator consists of a piston screw type pump which can produce Pitot or static pressure for checking the Helicopter instruments / System.

Salient Features:
  • Portable construction, Easy to carry
  • The END adaptors are made specially for Cheetah/ Chetak helicopter
  • Accurate and Rapid leak arrest system
  • 28V DC or 230V AC power supply input
  • Knots, km/hr & mph - Air speed units
  • 5 kgs (approx.) Weight
  • Environmental Tests
    • The equipment meets the requirements of JSS-55555

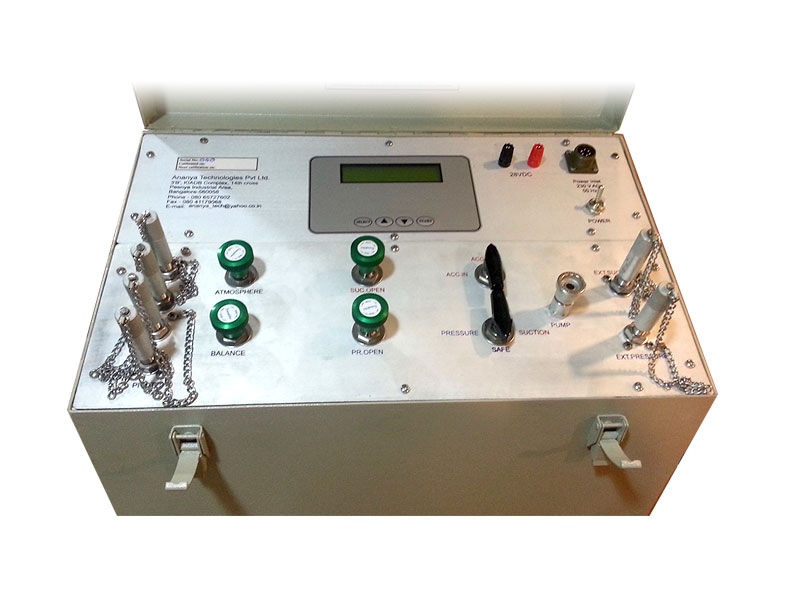

Pitot Static Test Equipment

The hand operated Pitot static test set, is a self-contained portable unit for first line functional check of Pitot static systems installed on various types of aircraft and helicopters.

In addition, to conducting leak tests on the Pitot and static systems the test set could also be used to check proper functioning of certain aircraft instruments by comparing their performance with the corresponding digital manometer fitted on the test set. In case external pressure and suction are available it could be connected to the test set for which suitable provision has been made.

Salient Features:
  • Solid Body construction
  • Altitude in Feet and Meters
  • Air speed indicator in km/hr and knots
  • Rate of Climb (ROC) in feet/min and km/hr
Environmental Tests
  • The equipment meets the requirements of JSS-55555
  • Vibration test:
    • The unit will be subjected to vibration in +20 m/s² sinusoidal motion over the frequency range 5 Hz to 350 Hz in z-axis for 5.

  • Thermal cycle test:
    • The unit will be subjected to thermal cycle test for the temp. Range of -20 to +55 deg C. Total hrs: 14 hrs
    • No. of cycles: 3, dwell time: 1 hr. Rise & fall 1 deg per min.

Pitot Static Leak Tester

Pitot static leak tester is used for testing and calibration of air speed and altimeter separately and also as a system installed in helicopter. Pitot static leak tester consists of a piston screw type pump which can produce Pitot or static pressure for checking the Helicopter instruments / System.

Salient Features:
  • Portable construction, Easy to carry
  • The END adaptors made specially for Cheetah/ Chetak helicopter
  • Accurate and Rapid leak arrest system
  • 28V DC or 230V AC power supply input
  • Knots, km/hr & mph - Air speed units
  • 5 kgs (approx.) Weight
  • ENVIRONMENTAL TESTS
    • The equipment meets the requirements of JSS-55555

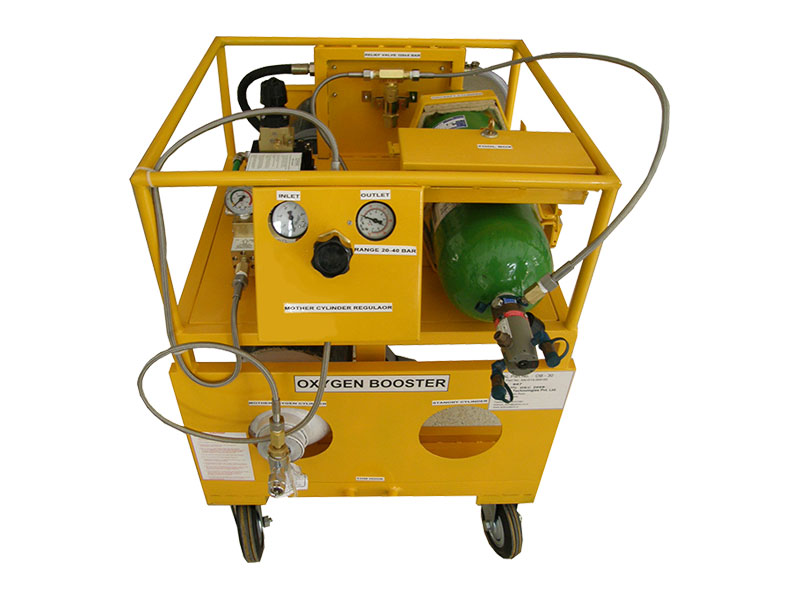

Oxygen Booster

The ‘Oxygen Booster’ is designed to boost the low oxygen pressure input from mother cylinder to high oxygen pressure output. This high pressure output is connected to recharge the Aircraft oxygen cylinder. By this way we can fully utilize the mother oxygen cylinder.

Salient Features:
  • Designed for Medical Oxygen charging
  • Tubular Trolley construction for easy movement
  • Can carry two mother cylinders
  • Air driven pump with pneumatic switch, no electrical connection required
  • Easy to operate with minimal pneumatic connections
  • Can be operated from shop floor with compressed air or nitrogen
  • Protection for input shop floor compression air or nitrogen
  • Input and Output Oxygen pressure protection
  • Weighs 225 kgs (approx.) with two mother cylinders
Environmental Tests
  • The equipment meets the requirements of JSS-55555
  • High Temperature tests: +55°Ϲ ± 3°C for 16 Hours
  • Damp Heat Test: +40°C ± 2°Ϲ, RH 95% for 16 hours
  • Low Temperature tests: -30°Ϲ ± 3°C for 16 Hours
  • Road ability Test:
    • JSS 55555 Test no 29, Procedure equipment should be hauled for a distance of 40 km on rough terrain (packed surface)

Nitrogen Booster

The ‘Nitrogen Booster’ boosts the low nitrogen pressure input from mother cylinder to high nitrogen pressure output. This high pressure output is connected to recharge the Aircraft nitrogen cylinder. By this way mother nitrogen cylinder can be utilized fully.

Salient Features:
  • Tubular Trolley construction for easy movement
  • Can carry 2 mother cylinders
  • Nitrogen Booster Ratio 45:1
  • Easy to operate with minimal pneumatic connections
  • Can be operated from shop floor compression air / nitrogen
  • Protection for input shop floor compression air / nitrogen
  • Input & Output nitrogen pressure protection
  • Tarpaulin cover for dust protection

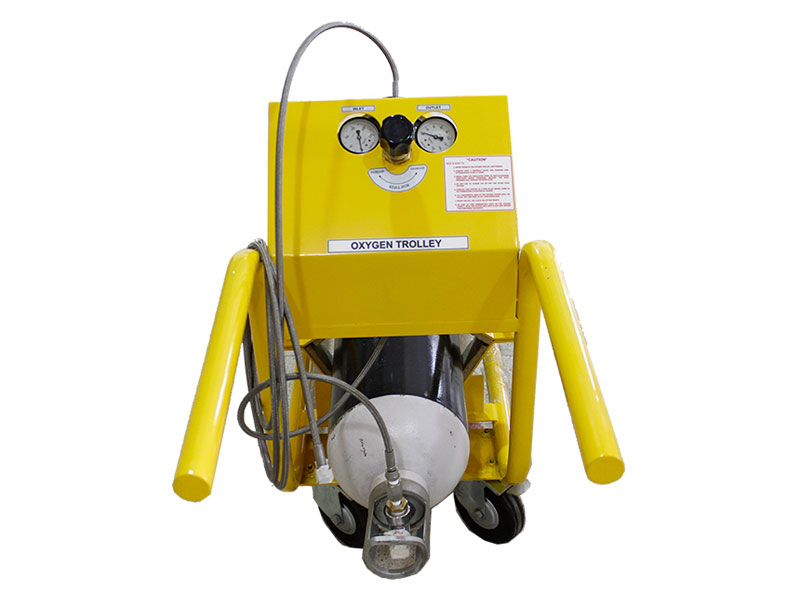

Oxygen Charging Trolley

The Oxygen Trolley is designed and developed to fill the oxygen to aircraft oxygen cylinder up to 130 bars. This is mobile and can be moved on the tarmac easily.

Salient Features:
  • Tubular Trolley construction for easy movement
  • Pressure gauge for Oxygen Cylinder
  • Pressure gauge for Mother Cylinder

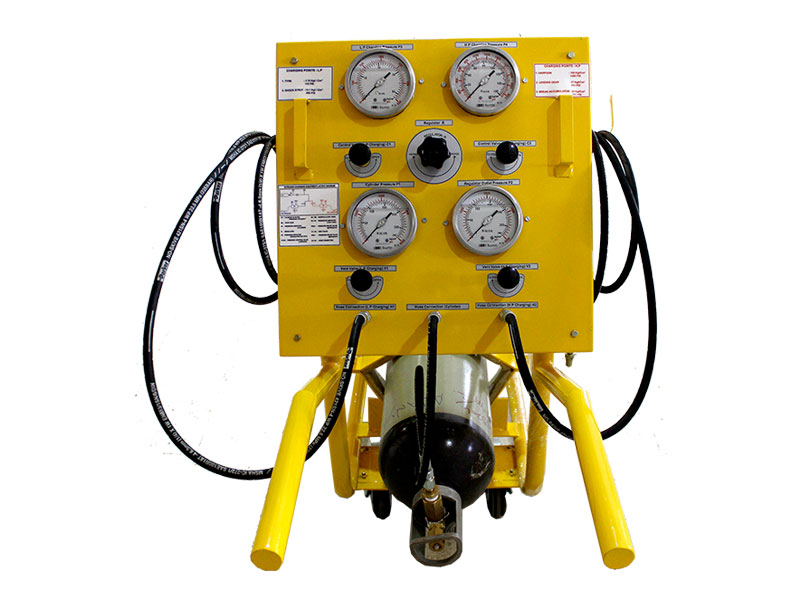

Nitrogen Charging Trolley

The Nitrogen Ground Charging Trolley is designed and developed to charge Aircraft Accumulators, Tyres, Shock struts, etc. in-site. This is mobile and can be moved on the ground easily.

Salient Features:
  • Tubular Trolley construction for easy movement
  • Low Pressure Nitrogen Charging up to 40 kgs/cm2 with relief valve protection
  • High Pressure Nitrogen Charging up to 160 kgs/cm2 with relief valve protection
  • Integrated with needle valve for easy and controlled charging for both high and low pressure

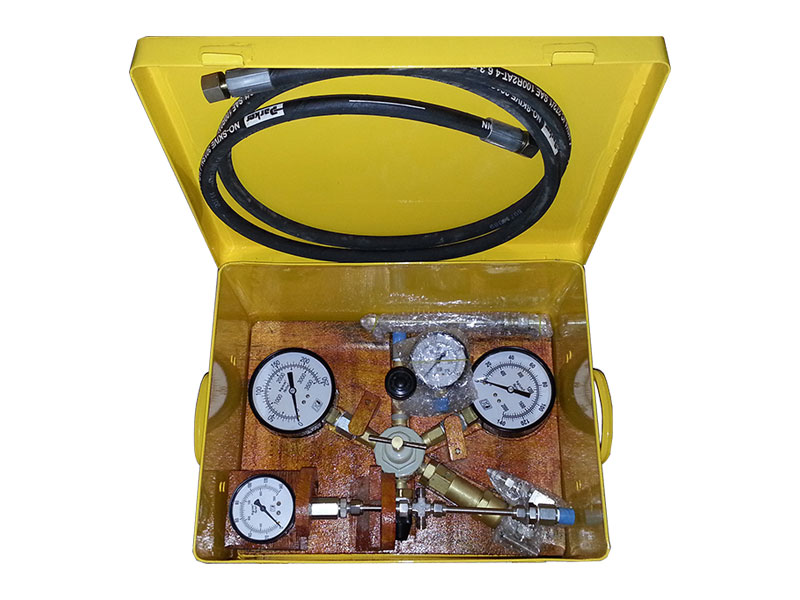

Inflation Apparatus

The Inflation Apparatus has been developed to meet the requirements of charging/recharging with nitrogen of empty or partially charged shock struts/brake accumulators of Helicopter, to their rated pressures. This equipment is compact and when packed in case is easily transportable.

Salient Features:
  • Compact design for easy transportation
  • Rugged Metal sheet enclosure
  • Used for charging Nitrogen
  • Directly mounts on the Nitrogen cylinder
  • Charges upto 90 kgs/cm2 nitrogen

Altitude Indicator

Compact Altitude Indicator is used for testing various altitudes & Static Pressure on the ground.

Salient Features:
  • Portable construction, Easy to carry
  • 28V DC or 230V AC power supply input
  • Dimensions
    • 260mm * 220mm * 230mm
  • Altitude in Feet and Meters
  • Pressure displayed in Kpa, Mbar, psi & kg/cm2

Digital Pressure Indicator

Digital Manometer or Digital Pressure Indicator is used for testing differential pressure on the ground.

Salient Features:
  • Portable construction, Easy to carry
  • 28V DC or 230V AC power supply input
  • Dimensions
    • 260mm * 220mm * 230mm
  • Pressure displayed in mmWg, inWg , inHg, mmHg, Kpa, Mbar, psi & kg/cm2
